One satisfying perk of owning an RV is you get to do proper laundry anywhere you go. If you’re only camping for a few days and decide to extend your stay, you don’t have to worry about not having enough clean clothes left. You can wash dirty laundry using a fully functioning washing machine.
But the convenience of doing laundry in your RV depends on what type of washer you have.
Many RV owners choose the Splendide 2100XC. It’s a washer-dryer combo, which saves space and conserves resources better than traditional washers. It’s perfect for RVs because it uses either standard household electricity or propane gas.
The 2100XC model is manufactured by Splendide, a company specializing in compact and efficient laundry machines for RVs and boats. Here are some of its notable features:
- It is a 2-in-1 washer and dryer combo with a vented drying system
- It has an LED cycle that indicates status and fault codes
- It can wash up to 15 lbs. of clothes and dry up to 11 lbs.
- It only uses 7.5 to 16 gallons of water per hour
- It is 33.13 x 23.5 x 22.63 inches large with a door that swings up to a 160° angle
- A unit usually comes as a package that includes water inlet hoses, electrical connections, and flexible drain hoses
There’s no doubt that this washer-dryer is top-of-the-line. Splendide has been creating innovative laundry solutions since 1984, and all their products deliver quality beyond expectations.
However, the Splendide 2100XC isn’t made to last forever like any other equipment. There will be instances when it won’t work, especially if you fail to protect it from wear and damage.
Thankfully, these occasional malfunctions can be fixed. Splendide designed it to show codes representing common issues you might encounter and their suggested troubleshooting methods. You can find these codes in the manufacturer’s manual, which comes with the product.
This article discusses some of the most common ones and how to fix them.
Main components of the Splendide 2100XC
To better understand what the fault codes signify and what the instructions meant, it’s best to identify Splendide 2100XC’s main components first:
- Drum – the container that holds the clothes during the washing and drying cycles. It is typically made of stainless steel and rotates during the cycles to agitate the clothes and ensure thorough cleaning and drying.
- Motor – powers the drum’s rotation and controls its speed. Most washer-dryers have a high-efficiency brushless motor.
- Electronic Control Unit (ECU) – the “brain” of the washer-dryer, managing all the functions and ensuring the machine runs smoothly. It receives input from sensors and other components, such as the water level and temperature sensors.
It uses this information to control the operation of the machine’s motors, valves, and other systems.
- Water Inlet Valve – controls the flow of water into the washer-dryer. It is usually located on the back of the unit and connected to the hot and cold water supply lines.
- Drain Pump – removes the used water from the drum during the washing cycle. You can find it at the bottom of the unit. It pumps the water out through a drain hose.
- Lint Filter – captures any lint or debris generated during the drying cycle. It sits inside the dryer compartment, needing regular cleaning and upkeep.
- Heater – heats the air inside the dryer compartment during the drying cycle. It helps dry clothes quickly and efficiently.
- Display – shows the machine’s status, the selected cycle, temperature and spin speed, and error codes.
Some models may have additional features and slightly different components. However, the above list consists of standard parts of a washer-dryer. You should refer to the owner’s manual for more information about your specific model.
Common Splendide 2100XC error codes and How To Troubleshoot Them
The fault codes that appear on the LED monitor are there for protection. The machine is telling you to hold on and refrain from doing anything until the issue is resolved, or you’ll cause further damage.
So, don’t be anxious, and follow the troubleshooting steps provided in the manual. Below are some of the fault codes you might encounter and their solutions.
1. Fault Code F01 – Short-circuited motor TRIAC on module board
A TRIAC (triode for alternating current) circuit motor is an electronic circuit that controls the power supplied to an electric motor. This circuit typically includes a microcontroller or other control devices that send signals to the TRIAC to turn it on or off and to adjust the power supplied to the motor.
This allows for precise control over the speed and torque of the motor and can be used for various applications, such as controlling the speed of a washing machine drum or adjusting the temperature of a heating element.
If the TRIAC on your Splendide 2100XC’s motor module board has short-circuited, unplug the unit and turn off the power supply to avoid electric shock during the repair. Next, examine the motor module board to check for visible damage, such as burn marks or melted components. If there is any, you need to replace the board.
However, you can still salvage it if the damage is not apparent, so check the wiring and connections. If they seem fine, check for continuity and test the TRIAC using a multimeter. Finally, replace the TRIAC if it is broken beyond repair.

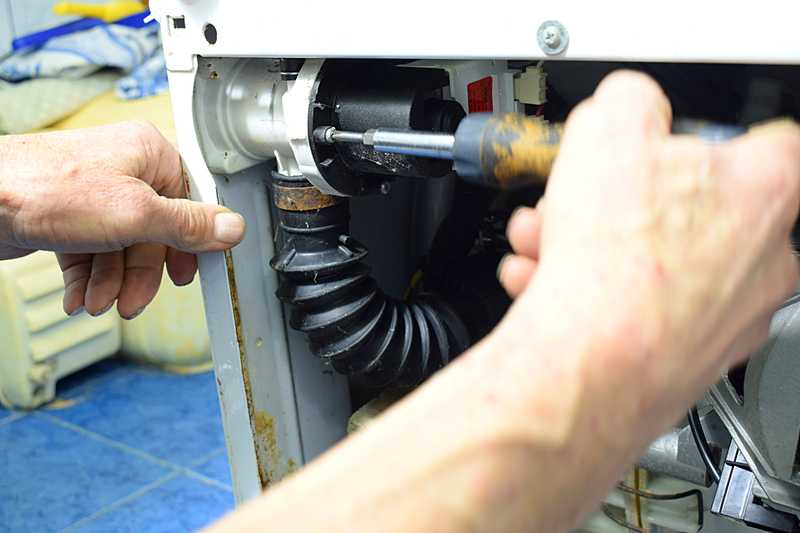

2. Fault Code F05 – Blocked pump/pressure switch stuck on empty
If the pump on your Splendide 2100XC is blocked or the pressure switch is stuck on “empty,” proceed to troubleshoot. Unplug the unit and turn off the power supply. Check the pump filter for clogs. If it’s choking with debris, replace it.
Check the hoses, too. They must be free from kinks or blockages. Clean or replace the hoses if necessary.
The code may also signify a clogged or damaged impeller. Scrub it and reach into its crevices for debris. If the damage is irreversible, replace it immediately. To fix a pressure switch stuck on “empty,” inspect the pressure switch for clogs or damage. You may need to replace this component, too.
It’s also possible the washer has faulty wiring and connections. It’s best to leave that part to the experts, as it will require invasive and complicated repair work.

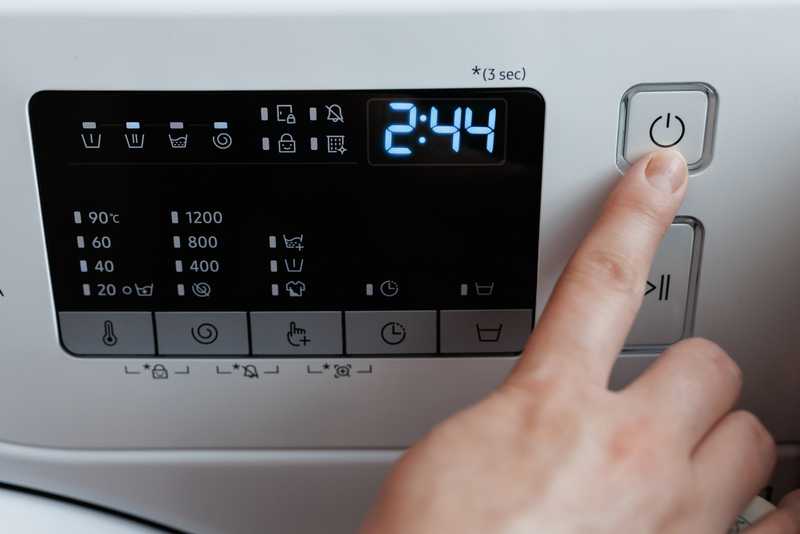

3. Fault Code F10 – Missing or conflicting pressure switch signal
If your Splendide 2100XC is experiencing a missing or conflicting pressure switch signal, it could indicate a problem with the pressure switch or related wiring/connections. In this case, check the pressure switch and ensure it is securely attached and in good order. Depending on its condition, you may need to get a new one.
The water level in the drum is likely too low, and the pressure switch can’t sense it. Add more water until the code disappears. Clogs in the inlet valve may also cause a similar problem, so check this component. Lastly, the drain hose may be the culprit if all those components work fine. Check for blockages and leaks.

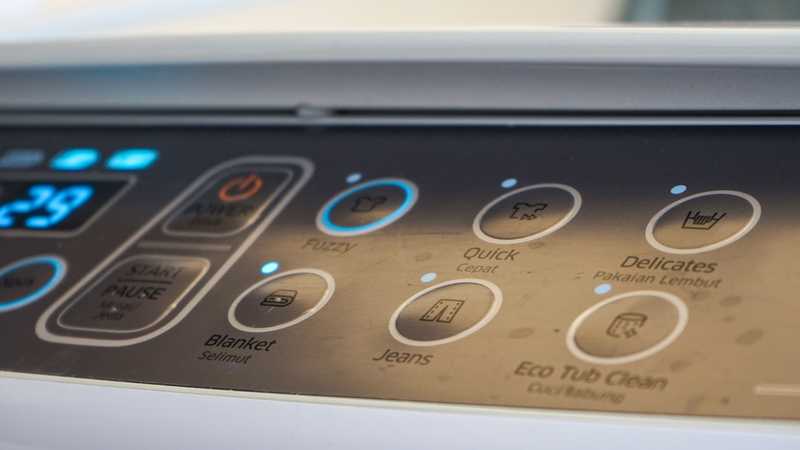

4. Fault Code F12 – Communication failure
Is your Splendide 2100XC showing an F12? That’s an indicator that the machine is experiencing a communication failure. This issue is linked to the control board and its connections.
To fix the problem, inspect the control board. It is located inside the machine, typically behind the control panel. It controls the various functions of the washer based on what you input through the panel.
The wires and connections that go into the control board from the machine must be well-soldered or affixed to the electronic board. Next, see if the display on the panel is showing the correct information.
Sometimes, it’s the defective one, showing false figures that make you think the machines need repair. It’s likely that the software for the Splendide 2100XC isn’t up to date. If so, update it right away.
5. Fault Code F14 – Dryer element is on, pressure switch is sensing water in the drum
This code indicates a problem with the pressure switch, the control board, or the dryer element. You can find the pressure switch on the water inlet valve assembly. It is a safety device that monitors the water level in the machine and prevents the machine from running if the water level is too low.
The sensors must be faulty if it’s sensing water in the drum, even if you’ve just emptied it.
Check the control board to see if there’s anything wrong with the pressure switch. Look for the wire connecting the pressure switch to the board. You might find the issue there. It’s also possible that the dryer elements trigger the code.
Regardless of which is causing the problem, be ready to buy a replacement part to ensure your washer-dryer works the next time you use it.
Conclusion
It’s hard to find a washer-dryer that precisely tells you what to do when it acts up. Many washing machine brands have this feature but primarily for traditional settings. Propane powered washer dryers for RVs and boats, such as the Splendide 2100XC, are distinct.
Unfortunately, these troubleshooting tips should be part of the long list of things you must learn as an RV owner. Knowing precisely what you should do when you see any of the codes prevents delays in your daily activities and keeps you from causing your washer-dryer more harm than good.
