Breaker Size for 12V Calculator for Campers

Have you ever had your camper fridge running but not cool? It’s enough to freak someone out. However, most of the time this isn’t because something mechanical has broken. This is usualy a voltage drop starving the compressor of the necessary power to cycle correctly.

Chances are you wired your batteries around the van and through some tight spots, thinking as long as the breaker doesn’t trip, all good. That assumption is exactly where most off-grid electrical projects goes wrong. Protection doesn’t just protect against fire, it protects equipment functioning right too.

Fixing Your Camp Fridge Power Problems

There is a simple calculator that will do the math for you. Once you understand what the numbers say, you has a plan instead of a guess.

First things first. Examine the load. Five amps doesn’t sound like much until you consider startup and how often it runs. For instance, suppose you have a fridge that run continuously for longer than three hours. In that case, electrical code typically says you should of assume it draws 125 percent of its constant power consumption. This is a safety margin to prevent insulation from overheating on hot wiring while used continuously.

And then there are surge currents to consider. Any appliance with a motor or compressor will draw twice or even three times the running current during startup. This means your breaker will trip every time the compressor kicks on if it’s only big enough to handle its normal draw. To help you get the right mix, the tool allows you to enter both steady state draw and surge current. This ensures protection device trips when necessary but remains intact during startup.

The other variable that is often neglected in this equation are wire gauge. The thinner the wire, the greater the resistance. Which means more of the voltage will be converted into heat before reaching your appliance. And remember, you’ve got precious little headroom to work with on 12-volt system. A single volt drop can send a touchy piece of electronics to sleep.

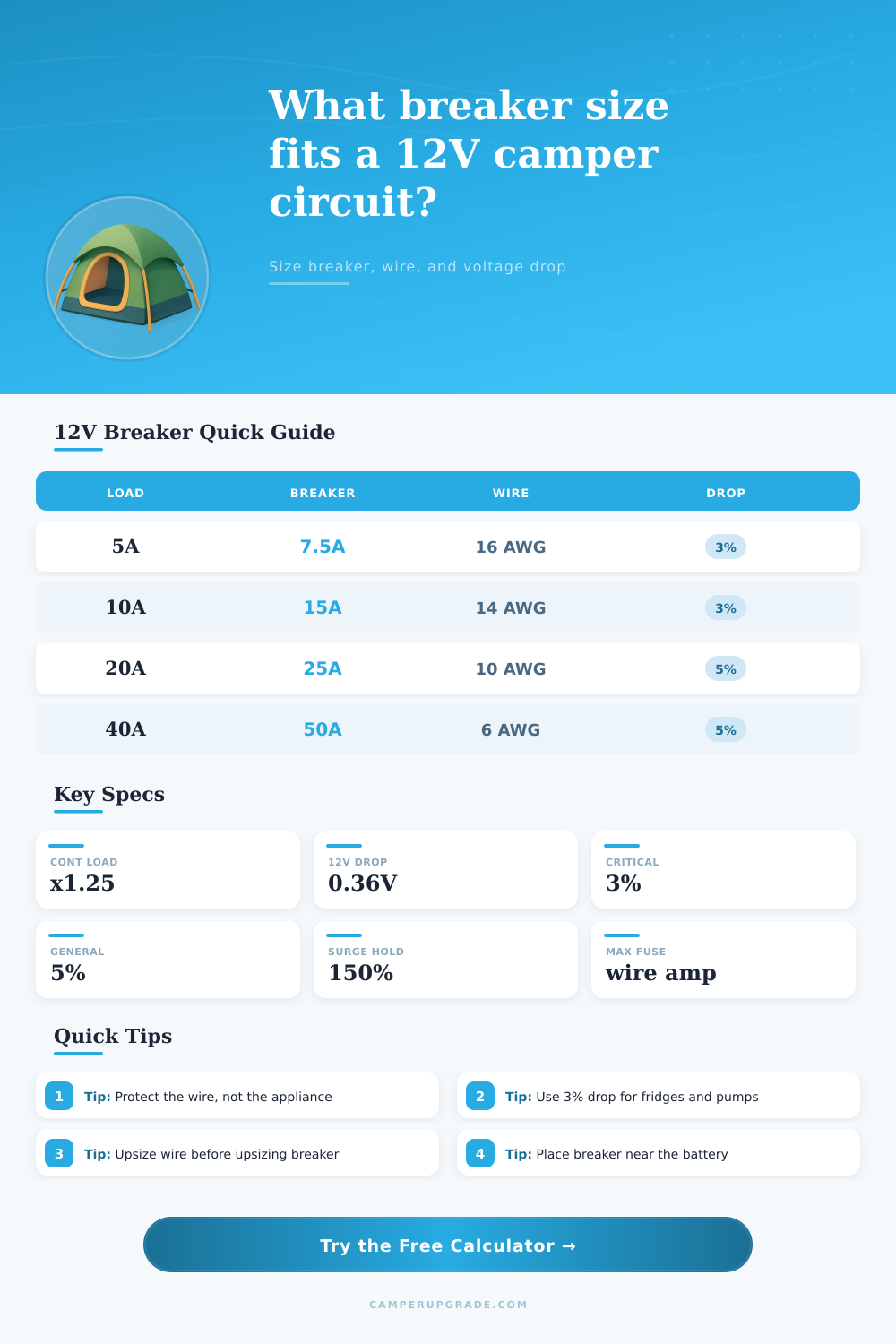

This brings us back to the calculator, which asks for both wire material and run length. Aluminum doesn’t conduct as well than copper, but even copper becomes less efficient at long distances. The distance from your battery in the front to your lights in the back matter more than you’d think. This is all nicely laid out on the page and the reference table shows how voltage drop limits can force you to use thicker wire than ampacity ratings alone would suggest.

This becomes especially important if you’re using a moddern inverter, because it needs certain things done exactly right to work properly. It’s a little thing, but it matters. Surprisingly, environmental variables matter as well. Wires wrapped snugly around another cable or bunched up in a single conduit can’t shed heat nearly as well as those running loose and open. That heat buildup increases their insulation’s temperature and reduces its ability to safely carry current.

It’s called derating. When installing several high-current cables in the same engine bay compartment, this increased thermal load must be accounted for. Real-world installs aren’t perfect, so the calculator has fields for bundling conditions and ambient temperature, though you won’t find those by searching “wire gauge”. While skipping them may save you a couple bucks on wire today, it could cause your insulation to degrade down the road.

And lastly, select the kind of protection device. For branch circuits, a thermal reset breaker is nice since you can just flip it back on when it trips. But maybe for those high-current main feeds or your input on your solar controller, an ANL holder or even a blade fuse may be better suited with their higher breaking capacity and reliablity. It’s not about trying to avoid a fire, but rather that under stress, the system responds as expected.

Protect the conductor and then the equipment falls into place. If you have the proper tool to interpret the ampacity charts, you don’t have to memorize them all. Simply know that each wire has its limit and every volt counts in 12-volt system. Respect the voltage drop and keep the connections tight so your camp stays powered up without any guessing.
