🚛 Fifth Wheel Trailer Weight Calculator
Estimate dry weight, GVWR, hitch weight, and cargo capacity for any fifth wheel configuration

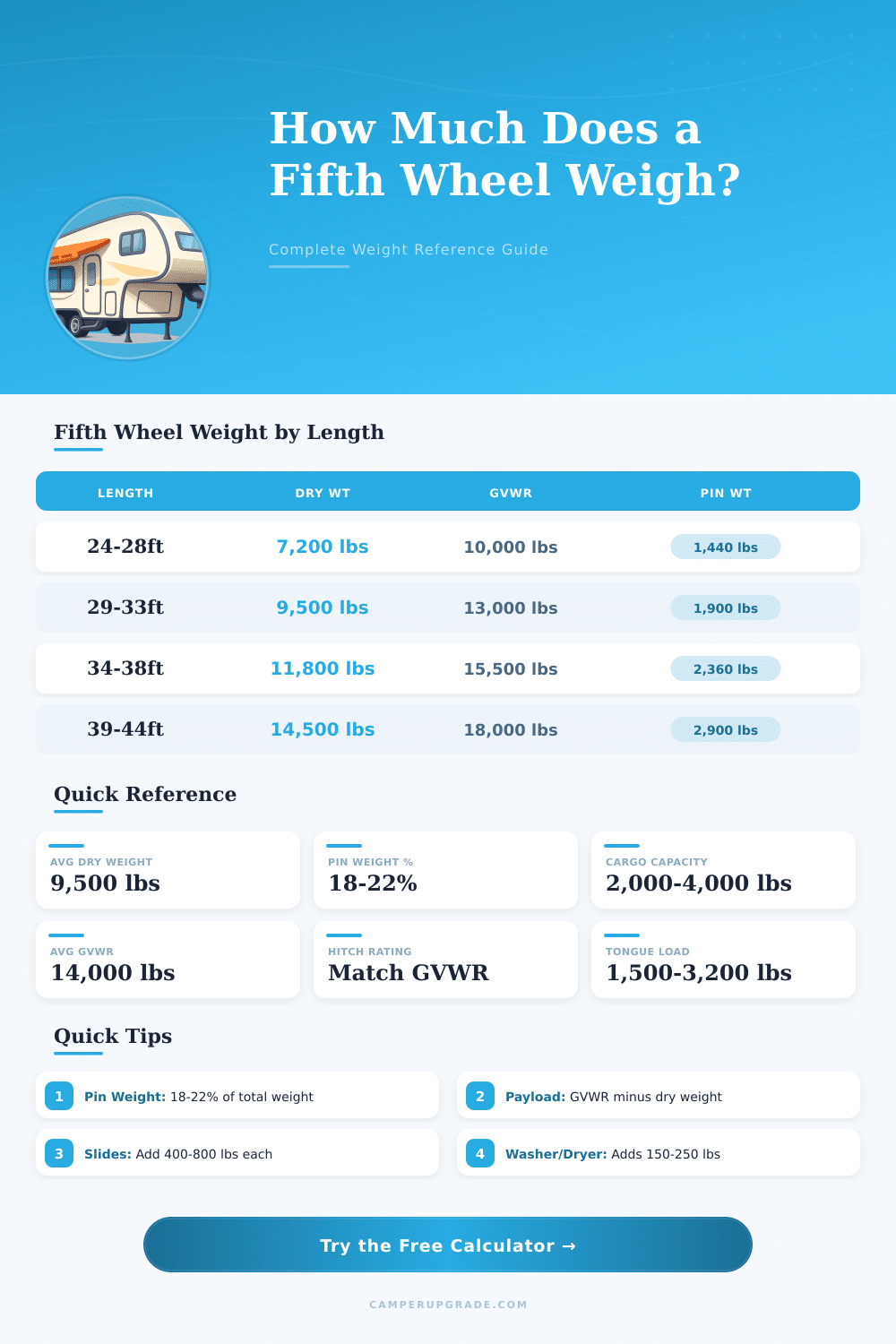

| Length (ft) | Avg Dry Weight (lbs) | Avg GVWR (lbs) | Avg Hitch Weight (lbs) | Avg Cargo Capacity (lbs) |
|---|---|---|---|---|
| 24 | 7,200 | 10,000 | 1,500 | 2,800 |
| 26 | 7,800 | 10,800 | 1,620 | 3,000 |
| 28 | 8,500 | 11,500 | 1,725 | 3,000 |
| 30 | 9,200 | 12,500 | 1,875 | 3,300 |
| 32 | 9,800 | 13,200 | 1,980 | 3,400 |
| 34 | 10,500 | 14,000 | 2,100 | 3,500 |
| 36 | 11,200 | 15,000 | 2,250 | 3,800 |
| 38 | 12,000 | 16,000 | 2,400 | 4,000 |
| 40 | 13,000 | 17,000 | 2,550 | 4,000 |
| 42 | 14,200 | 18,000 | 2,700 | 3,800 |
| Number of Slides | Additional Weight (lbs) | Additional Weight (kg) | Notes |
|---|---|---|---|
| 0 | 0 | 0 | Base weight only |
| 1 | 400–800 | 181–363 | Bedroom or living room |
| 2 | 800–1,500 | 363–680 | Most common config |
| 3 | 1,200–2,200 | 544–998 | Full-size models |
| 4 | 1,600–2,800 | 726–1,270 | Luxury full-timers |
| 5+ | 2,000–3,500 | 907–1,588 | High-end residential |
| Fluid Type | Weight per Gallon (lbs) | Common Tank Size (gal) | Full Tank Weight (lbs) |
|---|---|---|---|
| Fresh Water | 8.34 | 75 | 625 |
| Fresh Water | 8.34 | 100 | 834 |
| Gray Water | 8.34 | 60 | 500 |
| Black Water | 8.50 | 45 | 383 |
| Propane (liquid) | 4.20 | 7.1 (30 lb tank) | 30 |
| Diesel (generator) | 6.94 | 10 | 69 |
| Fifth Wheel GVWR (lbs) | Min Tow Rating (lbs) | Min Payload (lbs) | Typical Truck Class |
|---|---|---|---|
| 8,000–10,000 | 10,000 | 1,800 | Half-Ton (F-150, Ram 1500) |
| 10,000–14,000 | 14,000 | 2,500 | 3/4-Ton (F-250, Ram 2500) |
| 14,000–18,000 | 18,000 | 3,500 | 1-Ton (F-350, Ram 3500) |
| 18,000–22,000 | 22,000 | 4,500 | 1-Ton Dually (DRW) |
The Fifth Wheel Trailer holds its own place between the various kinds of vehicles for travel. Unlike the usual travel trailer, that attaches low beside the back bumper, the Fifth Wheel Trailer binds to a separate mechanism, that sits more high in the bed of the pickup truck. That difference of the hitch place gives an entirely other look and feel.
The front part, usually called gooseneck, rises much more than the rest of the trailer and mainly carries a bedroom or main living space. Here is the cause of that big form that allows bigger inside surface.
What Is a Fifth Wheel Trailer?
Size wise, Fifth Wheel Trailers a lot beat their travel relatives. A good travel trailer reaches at most about 31 feet, even so for a Fifth Wheel Trailer that simply is average size. The hitch setup and the built form of the front upper part helps to use more fully the available area for living.
In them you will find features like big refrigerators and other comforts, similar to those in average houses.
The experience of towing marks a big difference for them. Because the heavier part rests directly above the back axle of the car, the whole convoy stays steady on the road. And the travel trailers?
They sway during windy pushes. A Fifth Wheel Trailer almost does not mind that, probably it changes the game during stormy weathers. The way it turns also causes less trouble.
The pivot point sits a bit more forward, hence the trailer terns more exactly and flat than with a regular hitch.
About comfort, Fifth Wheel Trailer models sit a bit between travel trailers and motorhomes according too price, but they did not lose quality of life. They work well for full-time living in an RV. Some versions reach fancy level with nice finishes and rugged building.
Brands like Brinkley, Keystone Montana, Jayco Pinnacle and Forest River won a strong name. Many experts in RV travel had several trailers before choosing a Fifth Wheel Trailer and staying with it.
Even so, there are real trade-offs. To safely drag it, you need a strong pickup truck, usually three-quarter ton up to one-ton (and it uses gasoline like crazy). The hitch takes up the bed of your car, so you can not attach extra cargo.
The height also can create troubles. Low branches in campgrounds or forest paths can cause problems. Also, the size suits for paved campgrounds, not for wild trips.
There are more lightweight Fifth Wheel Trailers in the range of 26 to 28 feet for those that want something more simple. For example the Escape 5.0, a truly tiny model, that works with standard half-ton pickups. Nice advantage: at the campsite you can unhook the Fifth Wheel Trailer and freely drive the car through the city.
Owners of motorhomes do nothave such freedom. The choices of floor plans cover a wide range, from a living room with front seats to nested setups.
